All the Considerations when Designing K–12 School Sites

By Jason Carr, Structural Associate Principal, S. A. Miro, Inc.

Civil engineers often think of school design as an exercise in balancing competing priorities. Safety, traffic flow, site constraints, pedestrian patterns, drainage, sports fields, and a litany of regulatory requirements are all part of the mix. Nowhere is this more true than in the exercise of designing K–12 campuses that can handle surges of activity during short, windows of time.

Unlike commercial or residential developments, a K–12 school experiences its highest traffic volume during two peak periods: the morning drop-off and the afternoon pick-up. During those periods, nearly every group tends to arrive at once. Coordinating and separating these flows while preventing congestion on public streets becomes the basis of the entire site layout.

Many too often assume that staggering bell schedules would solve the problem. The suggestion will often be, “Why not start first grade at 7:00, second grade at 7:15, third grade at 7:30?” But anyone who has worked within the operational reality of a school district knows this is impractical. Bus routing, staffing schedules, after-school programs, and family logistics make staggered starts not feasible. The result is that engineering solutions must develop the solution.

Traffic Streams

A modern school campus must simultaneously accommodate several distinct vehicle types, each with its own set of challenges.

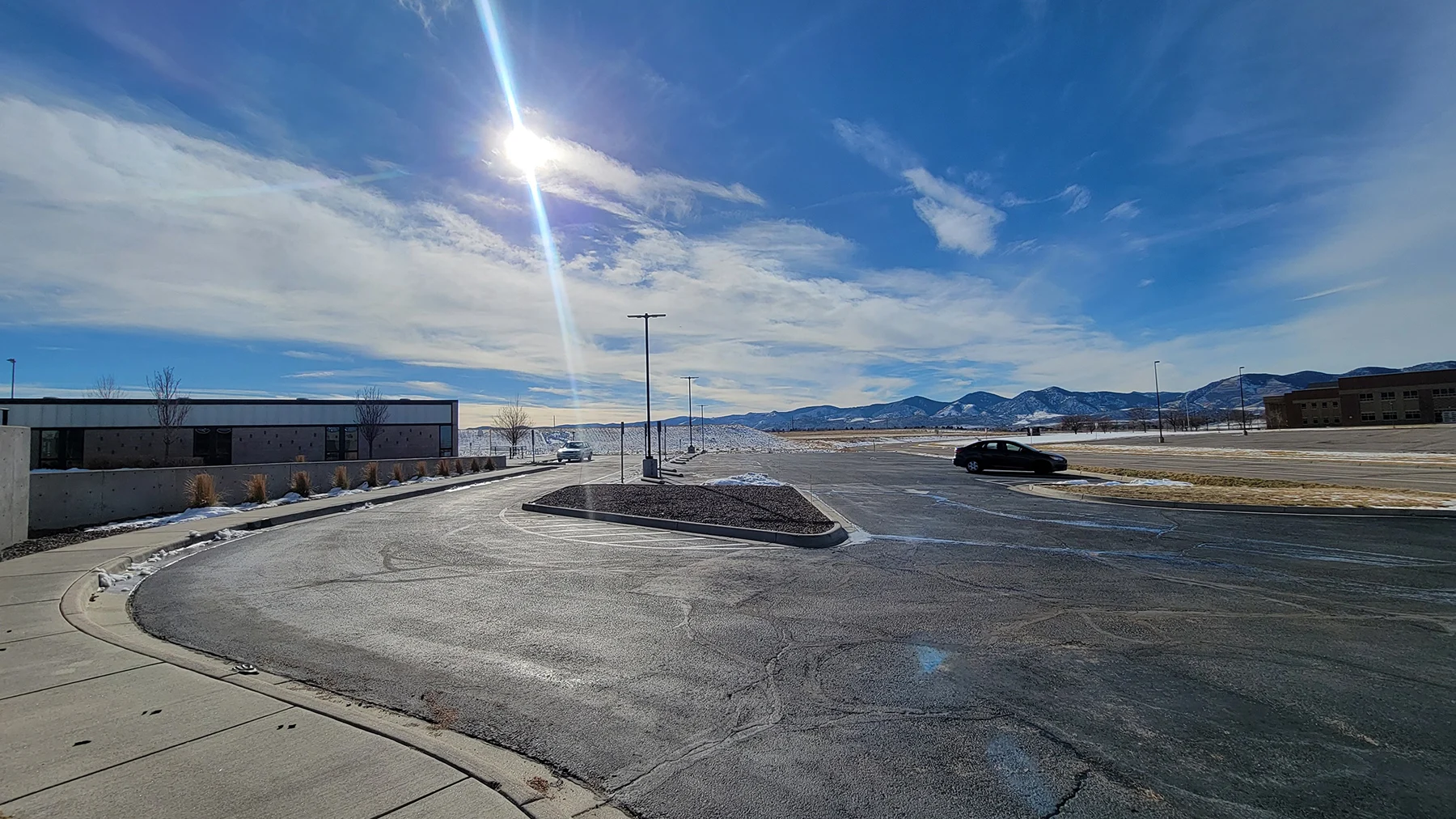

School bus traffic is predictable and highly concentrated. Dozens of buses often arrive within minutes of one another, requiring dedicated stacking space long enough to prevent spillover onto adjacent public roads. Buses also need a clear loop that allows them to pull forward, unload, and exit without reversing.

Alternatively, staff at a K-12 campuses tend to arrive earlier, requiring reliable, separate parking areas that are not entangled with the parents’ line. This often means locating staff parking in a discreet lot that provides direct access while remaining isolated from student circulation.

Accommodating for parents is typically the most challenging flow to manage, especially in communities where driving young children to school is the norm rather than the exception. Parents want to avoid buses, so they require a completely separate lane and often a lengthy stacking approach.

Additionally, for younger children, many parents will park and walk their child to the entrance. This necessitates a nearby bank of visitor parking which is used intensely for 30 minutes each morning but rarely needed during the rest of the day. Designing enough parking for event nights (performances, assemblies, open houses) while avoiding a sea of underused asphalt is always a challenge.

Next, there are delivery vehicles to prepare for. Schools rely on a steady stream of deliveries including food service, technology equipment, and trash collection. These vehicles need access to a dedicated loading zone, preferably on the backside of the building, separated from students and general traffic. Larger trucks also require generous turning space and heavy-duty pavement sections to withstand repeated loads.

Finally, there are the are the critical emergency vehicles. Life-safety access is non-negotiable. Fire departments require clear, unobstructed pathways around the building, reliable turning clearances, and strategic fire lane designations. This typically results in multiple points of vehicular entry and a circulation loop capable of accommodating fire trucks and medical responders.

Pedestrian Safety

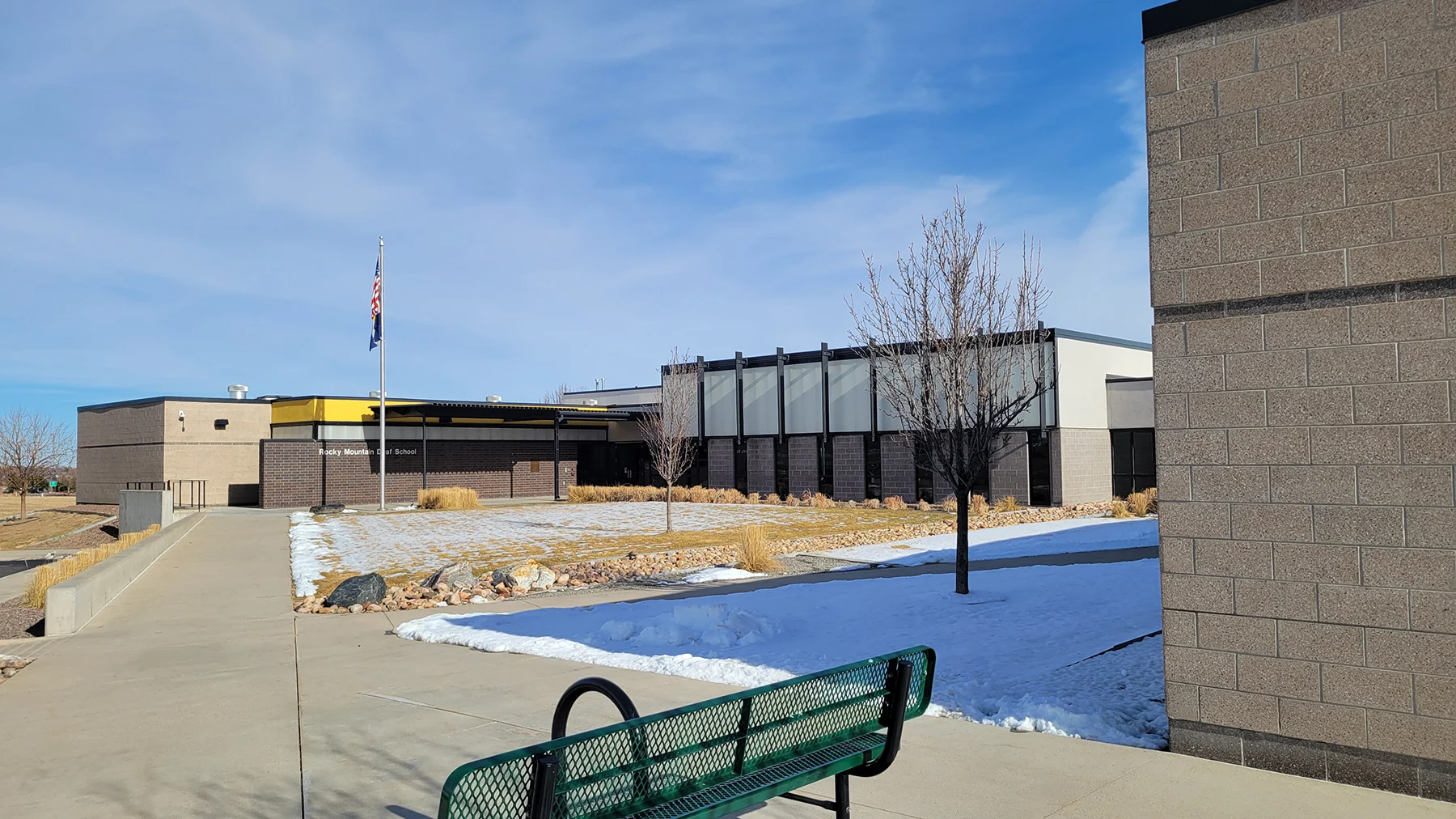

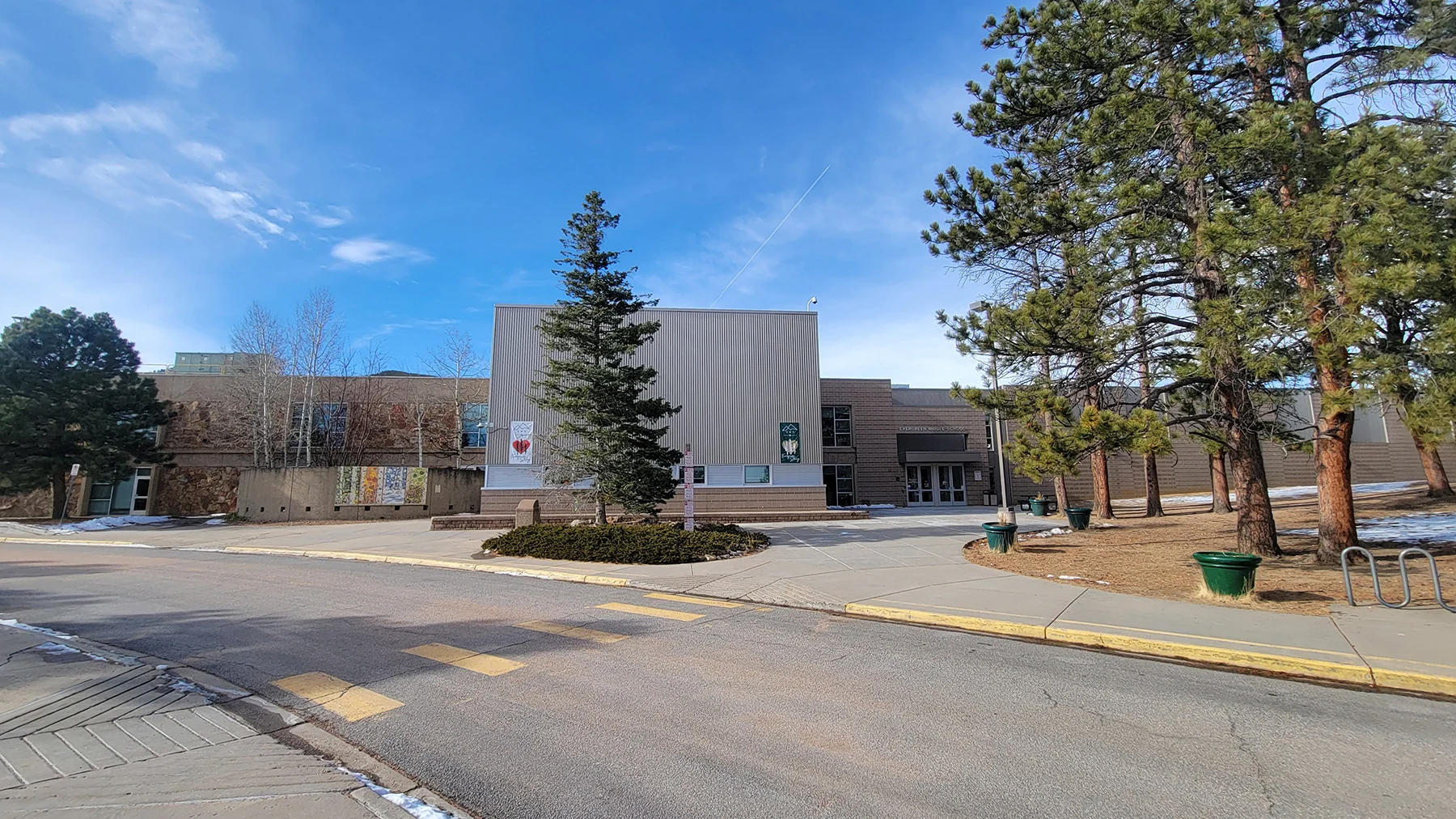

In many K–12 settings, a large portion of students arrive on foot. Engineering for pedestrian safety means more than simply marking crosswalks. It involves predicting human behavior. Students and parents will naturally choose the shortest path, even if it’s not the safest or intended one.

To reduce conflict between vehicles and pedestrians, crossings must be strategically placed in locations that feel intuitive and direct. Sidewalks must connect residential routes to the campus logically, minimizing the temptation to veer from the intended path.

Heavy Vehicle Considerations

School sites experience unusual pavement demands due to repeated bus traffic, delivery trucks, and periodic 18-wheelers. Geotechnical engineers typically provide recommendations for pavement sections based on soil conditions, identifying which areas can use standard asphalt and which require heavy-duty sections or concrete.

Bus loops, fire lanes, and service areas often demand significantly thicker structural sections to withstand frequent turning and braking of heavy vehicles. Although these upgrades protect long-term durability, they add substantial cost.

Athletic Fields

Beyond traffic and parking, school campuses must also leave room for a variety of outdoor elements. While generic open fields are straightforward to design, regulated sports facilities introduce a different level of complexity.

If a district expects a field to host official games, the required dimensions, clearances, and safety offsets increase. Drainage becomes even more critical. Fields cannot slope significantly along the direction of play, yet many sites are hilly or constrained, requiring substantial grading.

It’s common for districts to initially express interest in a full-size regulation field, only to discover during layout exercises that space, grading, and budget limitations necessitate scaling back.

Stormwater and Utilities

In new developments, schools often rely on master-planned stormwater facilities designed by a separate developer. When these facilities are delayed, the school project becomes tied to someone else’s schedule, creating friction and impacting opening timelines.

Similarly, roadway improvements, water and sewer connections, and other utility provisions must all align with construction sequencing. Early coordination with municipalities and developers is essential to avoid last-minute conflicts.

Master Planning

From an engineering standpoint, the most critical phase of any school project is the master planning one. During this phase, we must identify access points, understand jurisdictional constraints, define parking needs, ensure space for fields, and account for stormwater requirements, just to name a few. Good master planning requires asking the right questions early that outlines all of these needs.

When these issues are understood upfront, the resulting design is safer, smoother, and more resilient. When they aren’t, the project can devolve into a challenging mix of redesigns, compromises, and operational stress.
